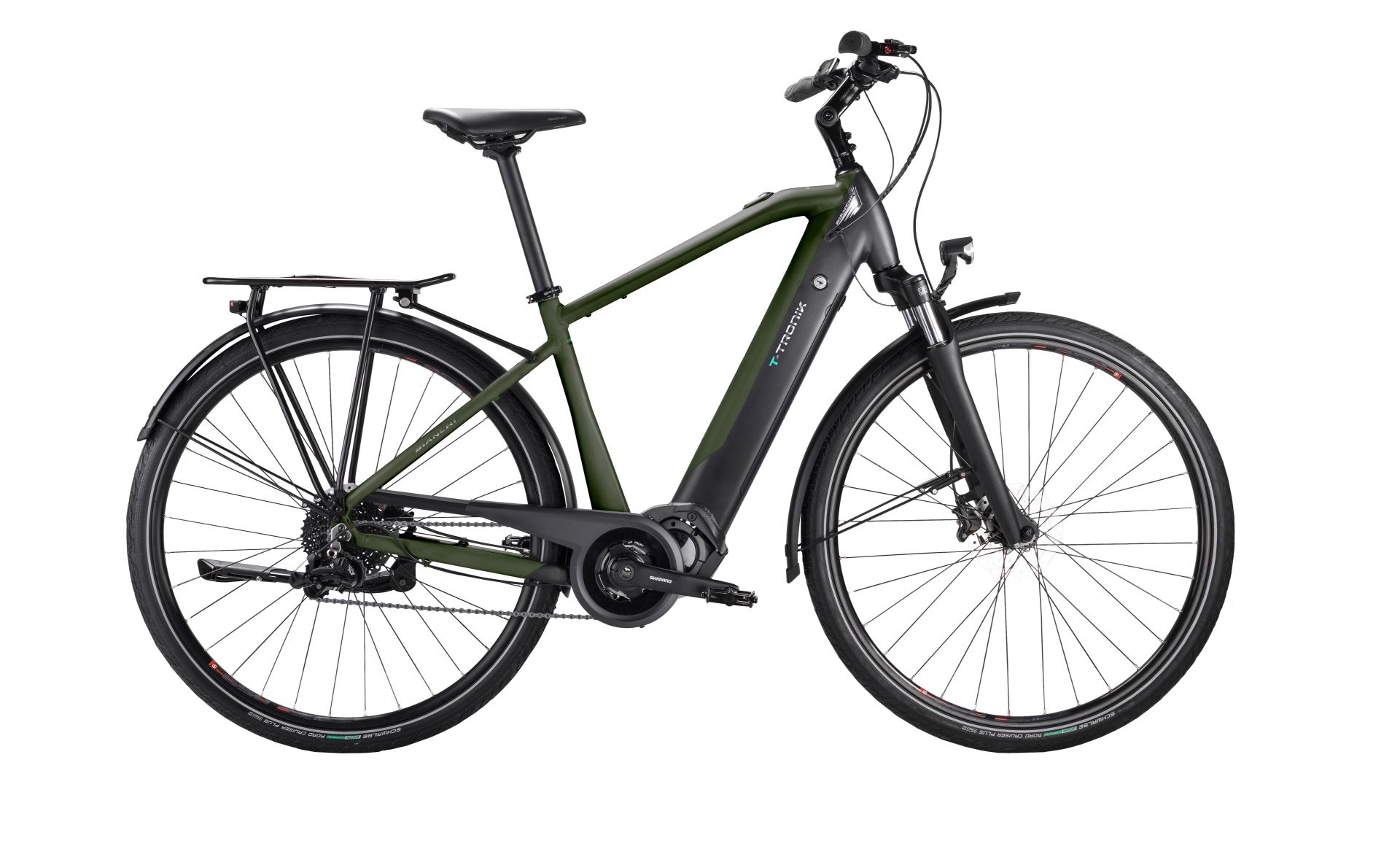

Bianchi T-Tronik T-Type E6100, 418Wh, Deore 1×10-Gang – 2022

Technische Daten

• Motor: Shimano E6100 250W, torque 60Nm
• Gabel: Suntour SF15-NEX-E25-DS-700C-63 PostMount disc brake, 1.1/8″“, travel 63mm, compatible with fender, OLD 100mm, Quick relase type
• Steuersatz: FSA 1.1/8″ 44H-N10P
• Schalthebel: Sunrace DLE903N, 9sp, w/ optical gear
• Schaltwerk: Sunrace, 9sp, max 42T
• Kurbeln: FSA SMN E-Bike Forged Crankset, 170mm CHAINRING, SM-CRE61, 38T, FOR CHAIN LINE 46.5MM
• Kette: KMC E9s EPT
• Bremsen: Radius, BH-M960, 900mm hose length, Direct Mount, w/adapter Radius BH-M960, 1700mm hose length, Direct Mount, w/ J-kit, w/ adapter, Radius Rotors RT900, 160mm, center lock
• Laufräder: Velomann 29″, 23-622, 32 hole black
• Reifen: Chaoyang E-Liner City 700x45C, 60tpi
• Vorbau: Velomann, 28,6 mm steerer ID Clamp, 31,8 mm barbore
• Lenker: Velomann 31.8/680mm, RISE 20MM, SWEEP 15°
• Griffe: Herrmans GRIPset Oxy DD29BR/BL 130mm/130mm black-black,d.22mm
• Sattelstütze: Velomann, lenght 350mm, diam. 31,6mm, 0mm seatback, Al2014 shaft + alloy head
• Sattel: Selle Royal, Essenza
• Pedale: VP black aluminum, w/reflector
• Schutzbleche: SKS Mudguard profile A60S, internal cable routing on the rear mudguard, secuclip/esc clip, protector on front and rear tail, protector on front mudguard
• Seitenständer: Ursus R81 WAVE REAR, 28″ – 40mm fixing plate (load 35kg)
• Gepäckträger: Racktime, RT Eco 2.0, 28″, black w/ roundstay 350mm
• Beleuchtung: Herrmans Mr GO; LightAxa Juno

• 28″ Pedelec Shimano E6100 418WH
• Rahmen: T-Tronik T-Type Frame 28″ Tourer, Suspended fork geometry, Alu PG 6061 32/37 Max shell, disc brake, O.L.D.135mm, D/T battery, size: 47/51

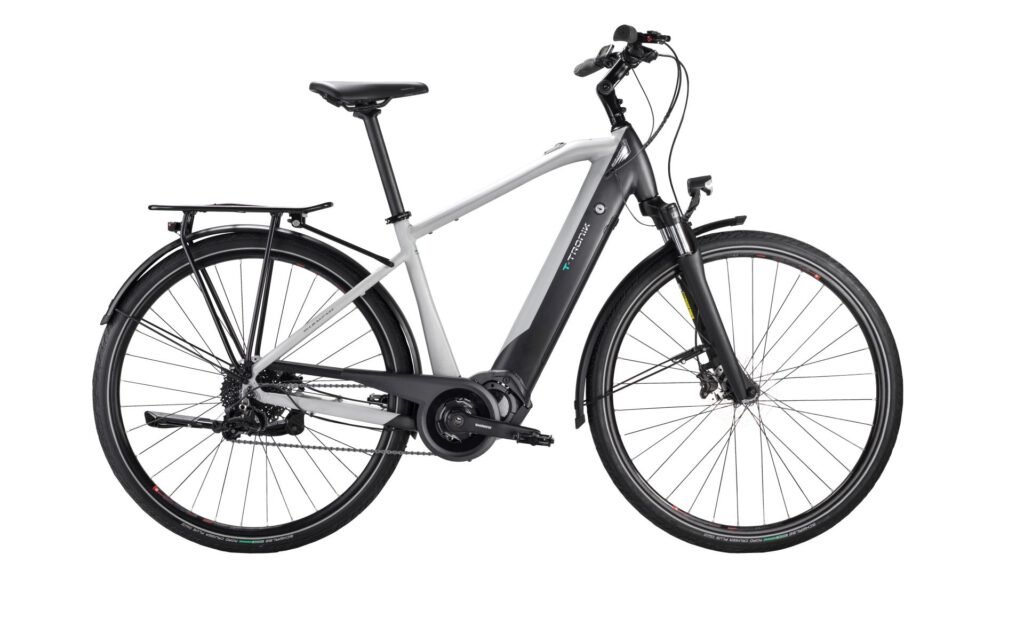

• Farbe: TY – DARK GRAPHITE + GRIGIO URBANO / FULL MATT; 2T – DARK GRAPHITE + VERDE VERONESE / FULL MATT

• Gewicht (Herstellerangabe):
• Bilder können im Deteil etwas abweichen und diehnen nur zur groben Veranschaulichung
